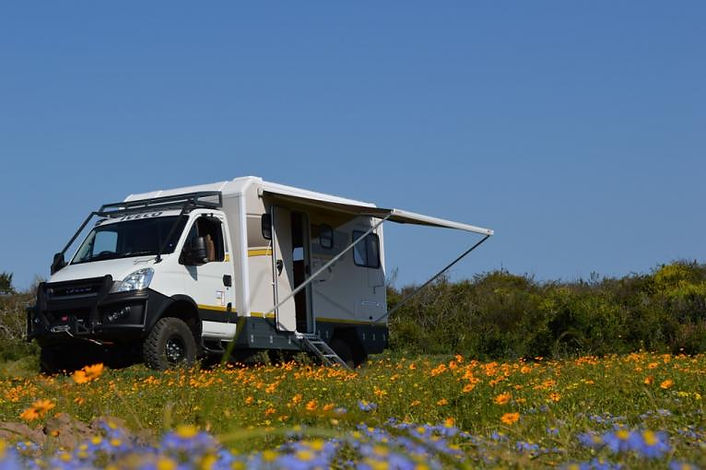

Iveco Discoverer Xtreme

On Request Only

The Discoverer Xtreme is custom made by Motorhome-World.

Your wishes will be discussed and incorporated into the design and we will ensure that your Discoverer Xtreme motorhome will be practical, capable and conform to your specification.
Send an Enquiry
arrow&v
arrow&v

Specifications

  • Chassis : IVECO 55S15W 4×4 single cab, 3400mm wheel base

  • Engine:   3,0ltr, 4 cylinder, Turbo Intercooled Diesel (Euro 3, so 500ppm diesel is fine)

  • Max Kw : 107Kw / 146Hp  @ 3000 – 3500rpm

  • Max Torque: 350Nm @ 1400 – 2600rpm

  • Drive:  Permanent 4×4 drive (40% front – 60%rear distribution)

  • Gearbox : 6 speed manual, (low and high range and half gears)

  • Overall lenght:5914mm

  • Overall width:2180mm

  • Overall height:3259mm

  • Tare Weight:4440kg

  • GVM:5500kg

  • Departure angle:32°

  • Bed size:864 x 2068mm

  • Motorhome body internal length:3307mm

  • Motorhome body internal width:

  • 2100mmMotorhome body internal height:1920mm

  • 3 point torsion free subframe
    Water capacity : 120ltr  Plastic tanks
    Fuel capacity : 90ltr (Iveco std) + 210ltr sub tank with pump over switch on dash
    2 x 3kg LPG Cadac bottles
    Luton with nose cone
    Aluminium underfloor storage boxes all round
    Slide out outside kitchen with combination 2 burner stove and basin with mixer tap
    Aluminium entry ladder system
    Large wrap around Bullbar
    12000Lb Warn winch on bullbar with plasma rope
    12000Lb Warn winch on rear with plasma rope
    MHW winch support for bullbar
    Red De-shackle for a bullbar
    Snorkel for Iveco Daily 4×4
    Breather kit for front, rear diff and transfer case
    Multi-media double din Radio/CD/Naviagation/Bluetooth including rear-view camera
    Air-suspension front and rear on demand including compressor and gauges, switches in cabin.
    Larger Air Compressor with 7ltr tank.

  • Large front Seating on RHS

  • 2 x Fiamma Turbo vent, 12volt, in roof

  • Storage cupboard with  small work tops

  • Large storage cupboards, with shelves / hanging space

  • Interior kitchen cupboard with combination 2 burner stove and sink with mixer tap

  • 65ltr draw fridge under kitchen, 12volt compressor.

  • Upholstry top cupboards (small)

  • Window in Window design at front settee

  • Storage space under settee.

  • Large table with 4 way adjustable hydrualic table pedestal

  • 3 x 100amp/hr batteries

  • 2 x 145watt semi-flex solar panels on roof

  • Solar regulator

  • Victron Energy MultiPlus inverter 2000w/80amp/12volt

  • Victron Energy Control panel

  • Victron Engery Battery monitor

E&OE

ALL SPECIFICATIONS ARE SUBJECT TO CHANGE AT THE DISCRETION OF THE MANUFACTURER WITHOUT PRIOR NOTICE
